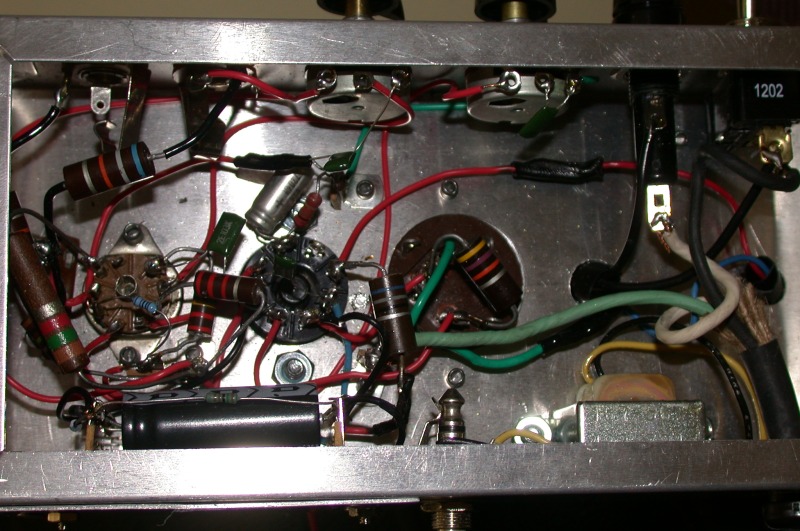

Insides on the amp built using instructions in a book by Tino Zottola ("Building Vacuum Tube Guitar and Bass Amplifiers (Volume 1)"). This is the "Sonic MA1".
I used mostly NOS carbon comp resisitor and a NOS can Capacitor. The tubes and NOS. 1x 12ax7 and 1x 50L6.
I plan on building this amp also. What transformers did you use?
perlnerd
Aug 5, 2006 1:04 PM
It's a power transofrmer form electronics goldmine ( http://www.goldmine-elec-products.com ) It's theri compact power transformer with the two primaries hooked up in series. The output transformer is from tubesandmore.com . It's their little 3 watt class A output transformer.
